Product Description

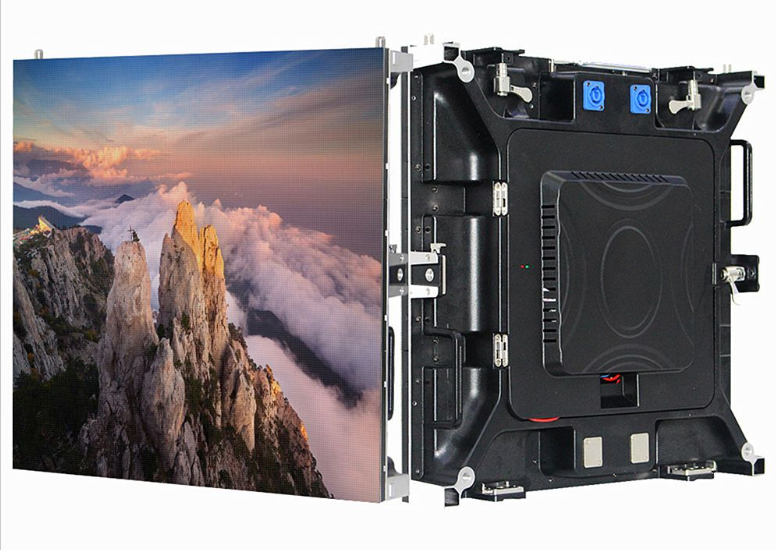

P3.9 500mm*500mm Indoor Rental LED Display Screen
Product features:
1. Light cabinet can save room and time of installation.
2. Brightness is high and adjustable, can meet the demands of the changing environments of daytime and evening, can save power consumption.
3. No mosaic due to excellent flatness and nice uniformity of light-emitting diodes.
4. Wide viewing angles and the horizontal angle can reach 140°. The images effect will not Change largely in the range.
5. Single-lamp maintenance with low cost.
6. Good heat dissipation capability because of the unique design of vent fan.
7. Environmental-friendly and energy-saving.
Application:
Applied to place where requires high-definition display and fast installation such as Indoor stage, television studio, concert, exhibition etc.
Product features:
1. Light cabinet can save room and time of installation.
2. Brightness is high and adjustable, can meet the demands of the changing environments of daytime and evening, can save power consumption.
3. No mosaic due to excellent flatness and nice uniformity of light-emitting diodes.
4. Wide viewing angles and the horizontal angle can reach 140°. The images effect will not Change largely in the range.
5. Single-lamp maintenance with low cost.
6. Good heat dissipation capability because of the unique design of vent fan.
7. Environmental-friendly and energy-saving.
Application:
Applied to place where requires high-definition display and fast installation such as Indoor stage, television studio, concert, exhibition etc.
| P3.9 500mm*500mm Indoor Rental LED Display Screen | ||||||||
| S/N | Item | Technical Parameters | ||||||
| LED Parameters | ||||||||
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle | |||
| 2 | Red LED | 2121SMD | 120-140mcd | 620-625nm | 140º/60º | |||
| 3 | Green LED | 2121SMD | 360-435mcd | 520-525nm | 140º/60º | |||
| 4 | Blue LED | 2121SMD | 80-100mcd | 470-475nm | 140º/60º | |||
| Module Specification | ||||||||
| 1 | Pixel Pitch | 3.91mm | ||||||
| 2 | Pixel Configuration | 2121SMD | ||||||
| 3 | Module Resolution | 64 x 64 pixels | ||||||
| 4 | Module Pixles | 4096 pixels | ||||||
| 5 | Module Size | 250mm*250mm | ||||||
| Cabinet Specification | ||||||||
| 1 | Cabinet Size(W X H X D) | 500mm x 500mm x 80mm | ||||||
| 2 | Cabinet Resolution(dot) | 128 x 128 pixels | ||||||
| 3 | Module Quanity (pcs) | 4pcs | ||||||
| 4 | Cabinet Pixels | 16384 pixels | ||||||
| 5 | Pixel Density | 65410 pixels/m2 | ||||||
| 6 | Cabinet Materials | Die Casting Aluminum for rental purpose | ||||||
| Whole Screen Specification | ||||||||
| 1 | Screen Brightness | ≥1400cd/m2 | ||||||
| 2 | Driving Method | 1/16 scan | ||||||
| 3 | Best Viewing Distance | 3.91m – 40m | ||||||
| 4 | Max. Power Consumption | 1200W/m2 | ||||||
| 5 | Average Power Consumption | ≤500W/m2 | ||||||
| 6 | Gray Level | 8bits input, 4096 levels(212) | ||||||
| 7 | Display Color | 16M | ||||||
| 8 | Frame Frequency | ≥60Hz | ||||||
| 9 | Refresh Frequency | ≥1200Hz | ||||||
| 10 | Uninterrupted Working Hours | ≥72 hours | ||||||
| 11 | Screen Life-span | ≥100,000 hours | ||||||
| 12 | MTBF | ≥5,000 hours | ||||||
| 13 | Discrete Blind Spot Rate | <1/10000 | ||||||
| 14 | Continuous Blind Spot Rate | None | ||||||
| 15 | Blind Spot Rate | <1/10000 | ||||||
| 16 | Screen Plainness | <±1mm | ||||||
| 17 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz | ||||||
| 18 | Environment Temperature & Humidity | Temperature:-20 Celsius~+60 Celsius | ||||||
| Humidity:10%~90% RH | ||||||||
| 19 | Control Mode | Synchronous display with control PC by DVI | ||||||
| 20 | Control System | DVI video card + full color control card + fiber system( optional) | ||||||
| 21 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. | ||||||
| 22 | Interface | Standard Ethernet | ||||||
| 23 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m | ||||||
